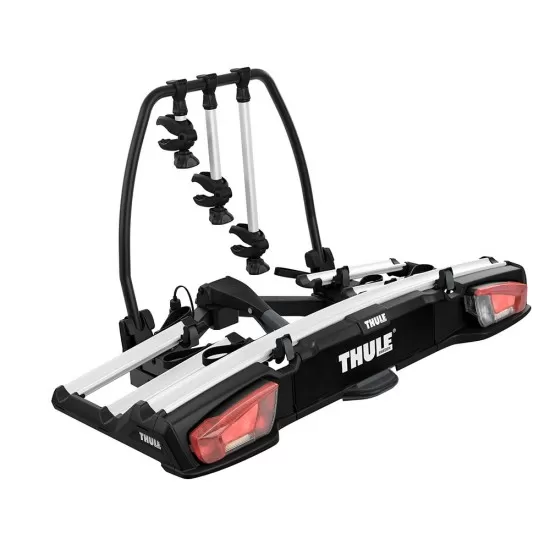

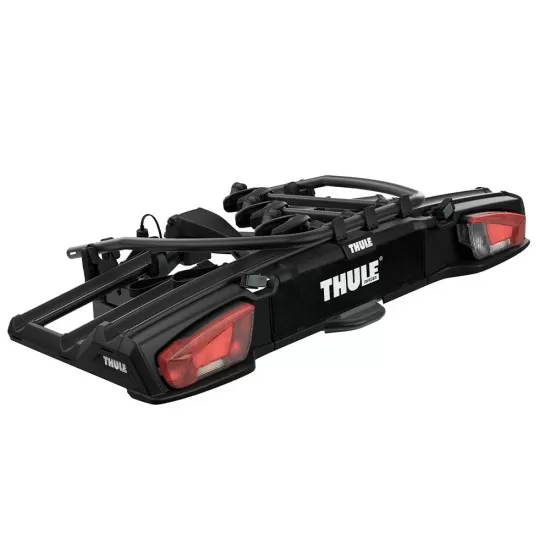

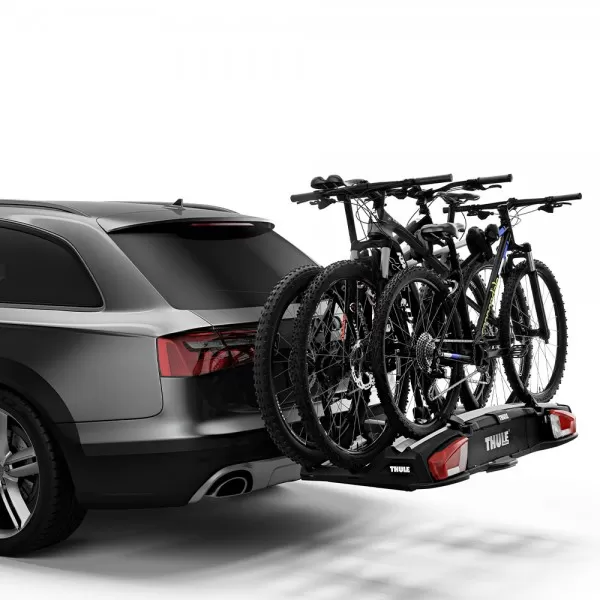

THULE VELOSPACE XT 3 BIKE CARRIER 13 PIN

The versatile bike rack for all types of bikes – from e-bikes

and fatbikes to small children’s bikes.

1. High load capacity enabling transport of lighter e-bikes

and heavy mountain bikes

2. Possible to increase the load capacity by 1 bike by

adding Thule VeloSpace XT Bike Adapter

3. Extra-long wheel trays enabling transport of large bikes

(up to 1300 mm wheelbase)

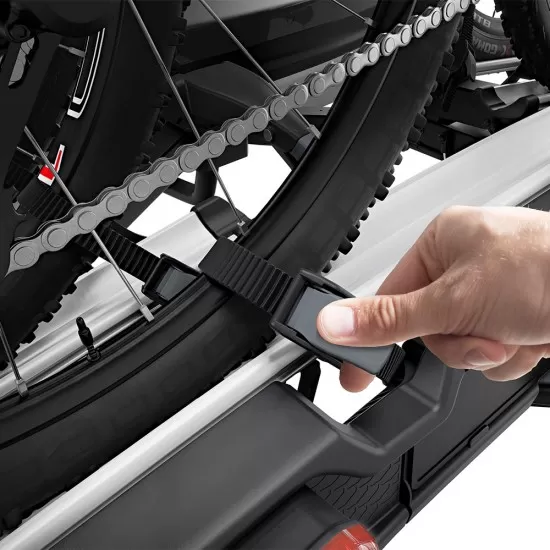

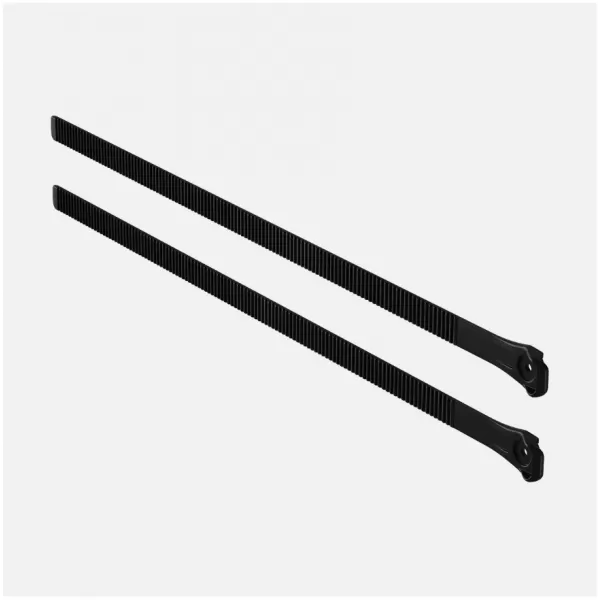

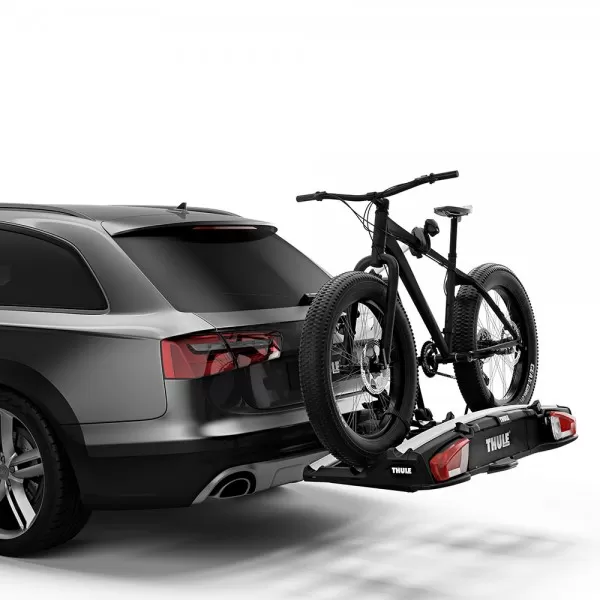

4. Adjustable pump buckles with extra-long wheel straps

for easy fastening of wheels (up to 4.7” wheels) enabling

transport of fatbikes

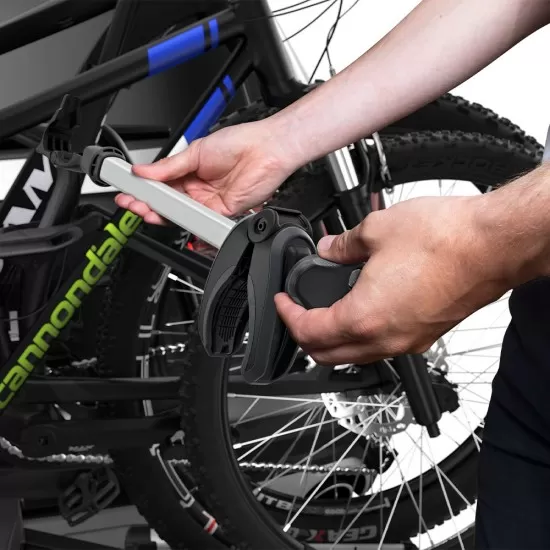

5. Easy mounting of bikes through detachable bike arms

with Thule AcuTight torque limiter knobs that “click”

when optimal torque is reached

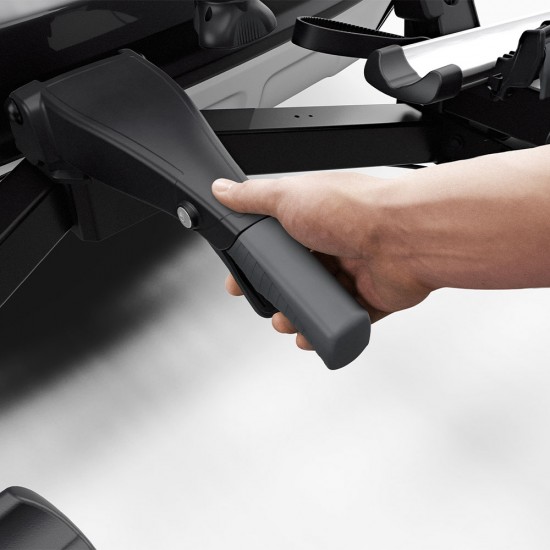

6. Easy mounting and adjustment of the bike rack before

closing the tightening handle, thanks to the towbar

coupling’s initial stability

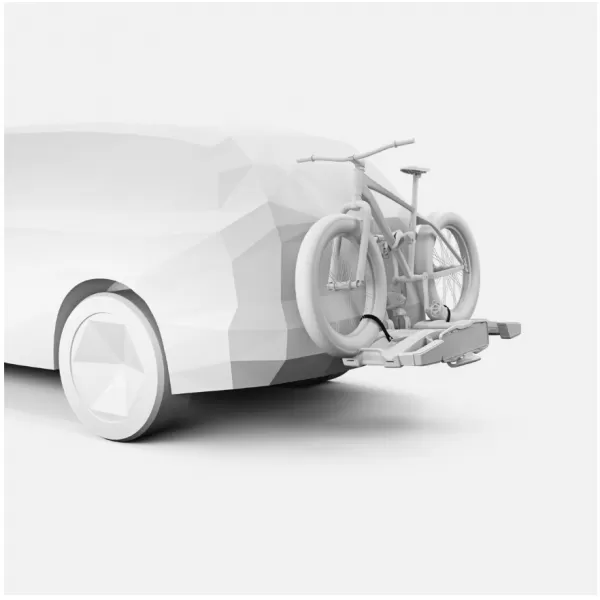

7. Easy trunk access with bikes mounted, thanks to smart

foot pedal tilt. Even very large rear doors can be opened

due to wide tilt angle

8. Lock your bikes to the bike rack and your bike rack to

the towbar (locks included)

9. Combine with Thule BackSpace XT to create an allround cargo carrier, giving the car 300L of easily

accessed, extra loading space

MAX NUMBER OF BIKES MAX WEIGHT PER BIKE

3+1 30 kg

MAX LOAD PRODUCT WEIGHT

60 kg 20.6 kg

FITS FRAME DIMENSIONS FITS WHEEL SIZES UP TO

22-80 mm Up to 4.7"

DISTANCE BETWEEN BIKES ELECTRIC CONNECTOR TYPE

19 cm 13 pin

FOLDED DIMS (L X W X H) UNFOLDED DIMS (L X W X H)

135 x 69 x 79 cm 135 x 73 x 79 cm

CARTON DIMS (L X W X H) CARTON WEIGHT

136 x 79 x 28 cm 26 kg

PALLET DIMS (L X W X H) PALLET WEIGHT

140 x 80 x 239 cm 223 kg

PCS PER PALLET

8 pcs

ADDITIONAL ACCESSORIES / OPTIONS

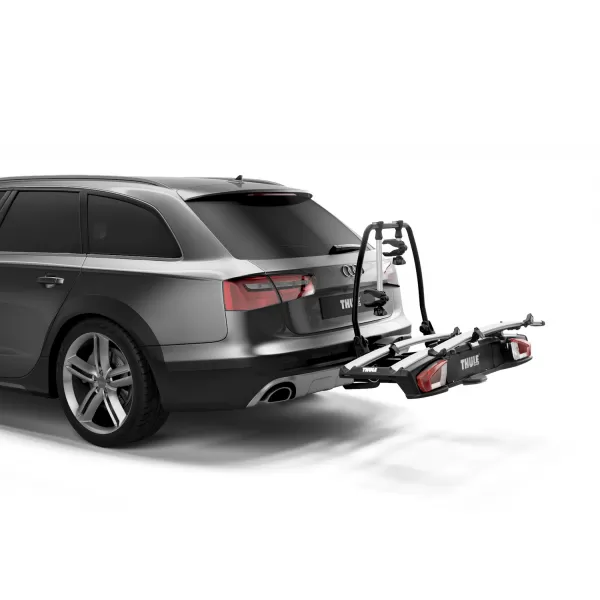

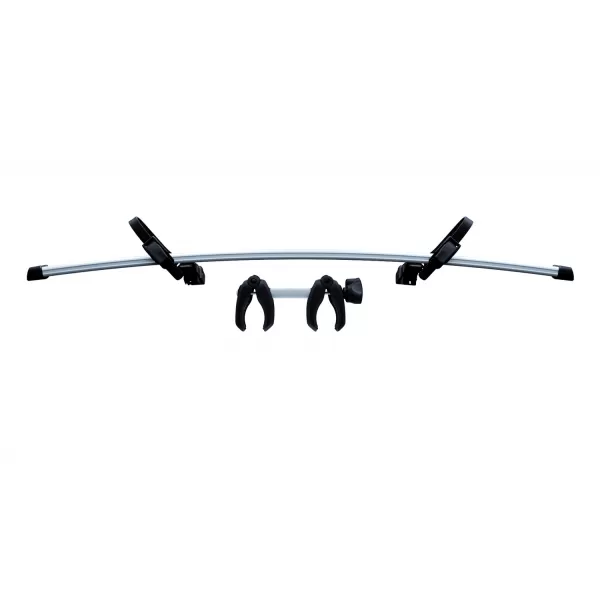

•Thule VeloSpace XT Bike Adapter 9381

 Increase the capacity of your Thule VeloSpace XT bike rack by one bike.

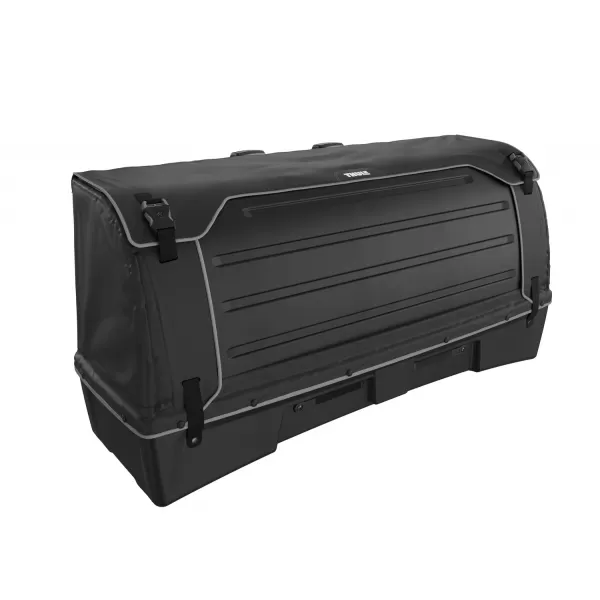

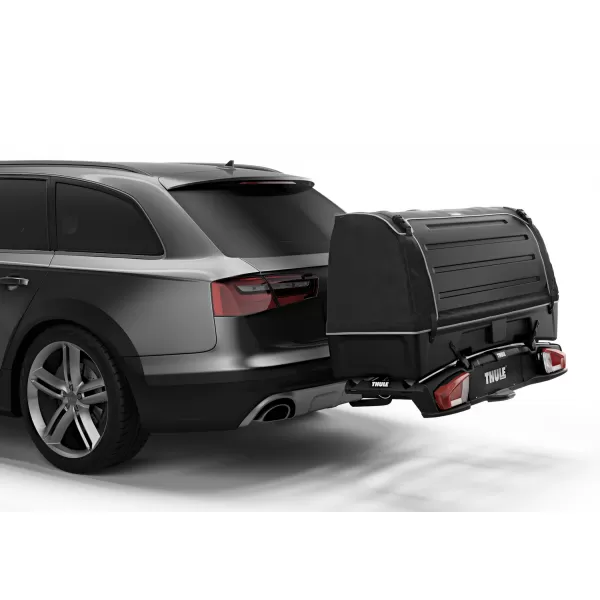

•Thule BackSpace XT 9383

 Lightweight, durable cargo box that fits onto the rear of the car, keeping all

 of your gear easily accessible.

•Thule BackSpace XT 4th Bike Arm 9392

 Enables transport of one bike in addition to your Thule BackSpace XT

 cargo box. For use together with Thule VeloSpace XT Bike Adapter.

•Thule Loading Ramp XT 9172

 Convenient removable ramp for easy loading and unloading of your bikes

 (includes cradles for fixation to carrier).

•Thule Transport Wheel 9173

 Convenient transportation wheel for the easiest transportation of

 your bike carrier to and from the car.

•Thule VeloSpace XT 3 Spare Wheel Adapter 9394

 Adapter 9394 for fitting the Thule VeloSpace XT 3 to cars with exterior

 spare wheels.

•Thule “One-Key-System”

 Very practical if several lockable Thule products are used (e.g. box, roof rack,

 ski carrier etc.). All locking-barrels will be replaced so only one key will fit all

 products. (544 = 4 cylinders + 2 keys, 596 = 6 cylinders + 2 keys,

 588 = 8 cylinders + 3 keys, 452 = 12 cylinders + 4 keys).
